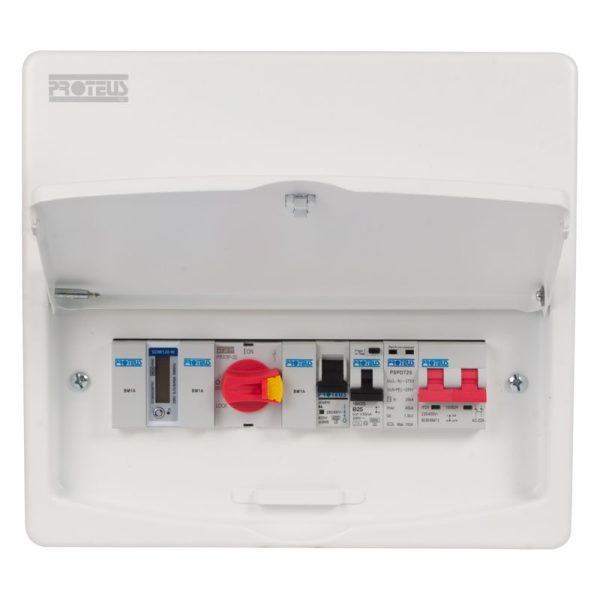

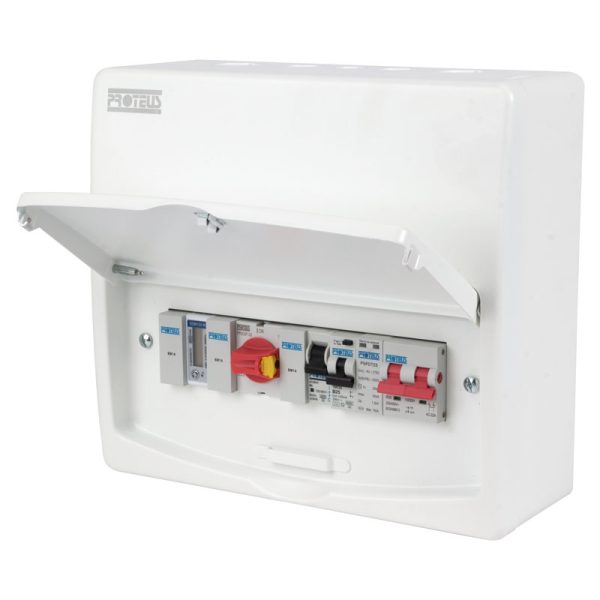

100A DP Isolator Incomer PV Metalclad Consumer Unit c/w 25A B Curve RCBO
- 100A Patented dual screw isolator
- 45A Bidirectional Generation Meter
- 25A RCBO & 6A MCB
- 32A Rotary Isolator
- Type 2 Surge Protection Device (SPD) fitted
- Non-combustible enclosure
- Matt white RAL 9016 finish
- Flush fitting door & curved cover
- Removable door via spring loaded hinge
- Pre fitted blank in remaining ways
- Additional information
Additional information
| Height | 260mm |
|---|---|
| Width | 322mm |
| Depth | 113mm |
| Terminal Cable Capacity | 35mm2 |
| Torque | 3 – 5 Nm |
| Mounting | Surface |
| Guarantee | 1 Year |
| Frequency | 50 Hz |
| Busbar Rating | 100A |
| Cable Entry | Selection of Knockouts |
| Rated Operated Voltage | 230/400V ac. |
| Number of Modules | 10 |
| Number of Outgoing Ways | Pre-populated |
| Packaging Types | Cardboard Box |
| Product Range | PV Consumer Units |
| Standards | BS EN 61439 1&3 |
| Protection Class IP Rating | IP4Xc |
| Surge Protection | T2 |
| Enclosure | Steel, colour RAL 9016 |
| Door Covers | Steel cover c/w letterbox lid |
| Switchgear Fitted | 100A Isolator, 25A RCBO, 45A kWh Meter, 6A MCB & 32A Rotary Isolator |
| Material | Steel |
| Finish | Powder Coated RAL 9016 Matt |
| Supplied With | 1x Blank Module, 1x Cable Entry Plate |
| Compliance | Low Voltage Directive 2014/35/EU, Restriction of the use of certain hazardous substances directive 2011/65/EU, Waste Electrical and Electronic Equipment directive 2012/19/EU |
| Intended Purpose | Distribution to final circuits through MCB's & RCBO's |
