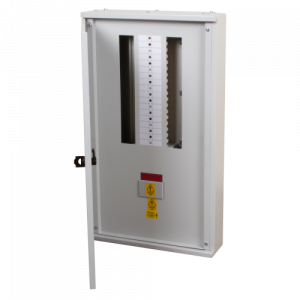

12 Way 200A Triple Pole and Neutral BX Range MCB Distribution Board Direct Termination No Incomer Fitted Clear Door

  • Available in 4 to 24 triple pole outgoing ways
  • Wide selection of factory fitted incoming devices to choose from to meet the demands of modern installations
  • Accepts MCBs from 2A to 63A and RCBOs from 6A to 45A (17.5mm wide module)
  • Dual Earth and Neutral terminal bars
  • Removable gland plates, top and bottom for ease of installation
  • Options with built in surge protection available
  • Manufactured to BSEN 61439 parts 1 & 3
Download PDF
Datasheet Download

Additional information

Height

700 mm

Width

410 mm

Depth

110 mm

Weight

11 Kg

Short Circuit Rating

10kA Icc.

Torque

M8 and M10 Bolt 20Nm max.

Ambient Temperature

-5 to +40 C

Number of Poles

Triple Pole And Neutral

Mounting

Wall Mounted

Guarantee

12 Months

Frequency

50 Hz

Cable Entry

Top And Bottom Glandplates Removable For Ease Of Cutting

Current Rating

200A

Rated Operated Voltage

230/400V ac.

Number of Ways

12 Way

Incoming Terminal Capacity

M8 Bolt 95mm Square Cable, Neutral M10 Bolt and Earth M8 Bolt

Number of Outgoing Ways

12 Way

Packaging Types

Each

Product Range

BX 3-Phase Distribution Boards

Standards

BS EN 61439 pt 1&3

Protection Class IP Rating

IP3X

Door Covers

Screw fixed internal cover. Side hinged overall door (removable) complete with plastic turn catch.
