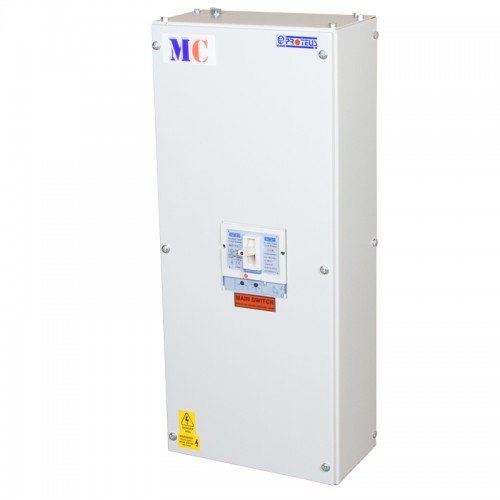

160A Four Pole 36kA Moulded Case Circuit Breaker In IP3X Steel Enclosure
- Range has four frames available
- Bidirectional
- Available in ratings from 63-800A
- Interrupting capacities up to 36kA at 400/415V AC
- Standard calibration is at 40 degrees
- Current limiting design
Datasheet Download
- Additional information
Additional information
| Height | 700 mm |
|---|---|
| Width | 300 mm |
| Depth | 170 mm |
| Weight | 14.17 Kg |
| Short Circuit Rating | 36kA |
| Torque | M10 Bolt 40Nm max., M8 Bolt 20Nm max, MCCB 6 Nm |
| Calibration Temperature | 40C |
| Ambient Temperature | -5 to +40 C |
| Mounting | Wall Mounted |
| Guarantee | 12 Months |
| Frequency | 50 Hz |
| Cable Entry | Top And Bottom Endplates Removable For Ease Of Cutting |
| Current Rating | 160A |
| Rated Operated Voltage | 230/400V ac. |
| Incoming Terminal Capacity | Neutral M8 Bolt and Earth M10 Bolt, Tunnel Terminal 120mm Square Cable |
| Standards | BS EN 61439 pt 1&2 |
| Protection Class IP Rating | IP3X |
| Rated Magnetic Operation | 10 x In |
| Rated Thermal Adjustment | 0.8 – 1 x In |
| Enclosure | 1.6mm Cold rolled steel with an epoxy paint finish to RAL7035 matt grey. |
| Door Covers | Screw fixed covers. |
| Switchgear Fitted | 4P Mccb 160A |
| Compliance | Low Voltage Directive 2014/35/EU, Restriction of the use of certain hazardous substances directive 2011/65/EU, Waste Electrical and Electronic Equipment directive 2012/19/EU |
| Intended Purpose | MCCB?s are designed to automatically disconnect the supply in the event of a circuit overload. |
| Bi-directional | Yes |
| Electrical Life | >5000 |
| Mechanical Life | >15000 |
