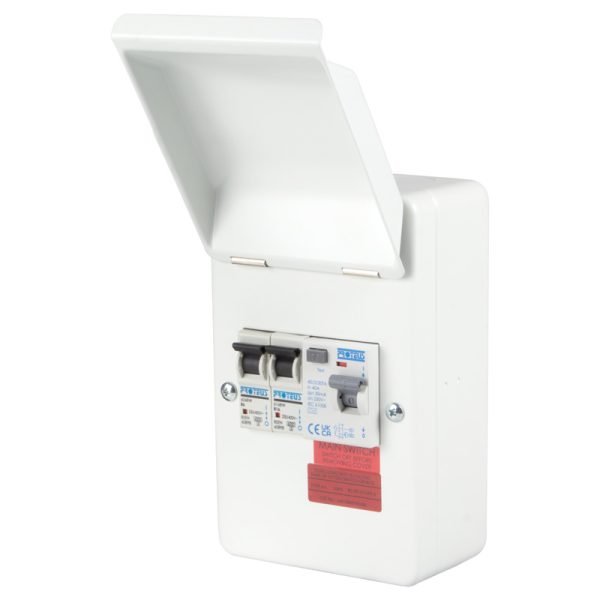

2 Way Garage Unit 40A RCD Incomer c/w 6A & 16A MCBs
- 40A 30mA RCD incomer as standard
- 6A & 16A MCBs as standard
- Non-combustible enclosure
- Matt white RAL 9016 finish
- Additional information
Additional information
| Height | 176mm |
|---|---|
| Width | 110mm |
| Depth | 92mm |
| Mounting | Surface |
| Guarantee | 10 Years |
| Frequency | 50 Hz |
| Busbar Rating | 40A |
| Cable Entry | Selection of Knockouts |
| Rated Operated Voltage | 230/400V ac. |
| Number of Outgoing Ways | 2 |
| Packaging Types | Cardboard Box |
| Product Range | Garage Units |
| Standards | BS EN 61439 1&3 |
| Protection Class IP Rating | IP4Xc |
| Lockable | Available On Request |
| Surge Protection | Optional |
| Enclosure | Steel, colour RAL 9016 |
| Door Covers | Steel cover c/w letterbox lid |
| Switchgear Fitted | 1x 6A & 1x 16A MCBs, 40A Type A Bidirectional RCD |
| Material | Steel |
| Finish | Powder Coated RAL 9016 Matt |
| Supplied With | 1x Cable Entry Plate |
| Earth Fault Sensitivity | 30mA |
| Compliance | Low Voltage Directive 2014/35/EU, Restriction of the use of certain hazardous substances directive 2011/65/EU, Waste Electrical and Electronic Equipment directive 2012/19/EU |
| Intended Purpose | Distribution to final circuits through MCB's & RCBO's |
