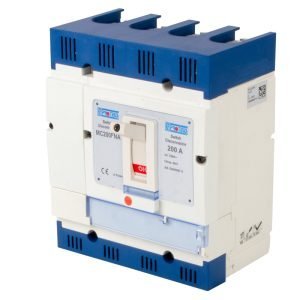

200A 4P Non Auto MCCB
- Switch Disconnector
- 4 Pole
Datasheet Download
- Additional information
- Product Instructions
Additional information
| Height | 161 mm |
|---|---|
| Width | 140 mm |
| Depth | 125 mm |
| Rated Insulation Voltage | 750V |
| Weight | 1.8 Kg |
| Short Circuit Rating | 36kA with upstream protection circuit breaker |
| Terminal Cable Capacity | <120mm2 (box clamps) |
| Torque | 8 Nm |
| Ambient Temperature | -20 to +60 C |
| Guarantee | 12 Months |
| Current Rating | 200A |
| Rated Operated Voltage | 400V ac. |
| Incoming Terminal Capacity | M12 Bolts 240mm Square Cable |
| Packaging Types | Each |
| Product Range | Moulded Case Circuit Breaker |
| Standards | EN/IEC 60947-3 |
| Compliance | Electromagnetic Compatibility Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Restriction of the use of certain hazardous substances directive 2011/65/EU, Waste Electrical and Electronic Equipment directive 2012/19/EU |
| Intended Use | MCCB?s are designed to automatically disconnect the supply in the event of a circuit overload. |
| Manufacturer | Proteus Switchgear. Stafford Park 12. Telford. Shropshire. TF3 3BJ. United Kingdom. |
| Bi-directional | Yes |
| Impulse Withstand Voltage | 8kV |
| Pollution Degree | 3 |
