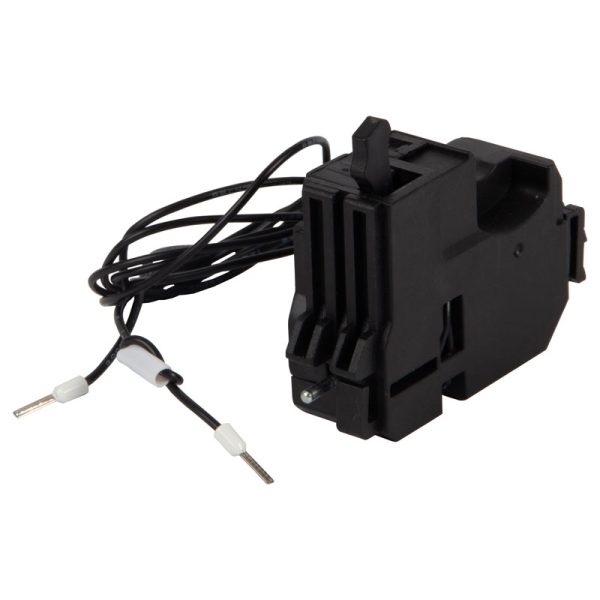

220V Shunt Trip For 3P & 4P 800A MCCB
- Shunt Trip for 3 or 4 Pole 800A MCCB
Datasheet Download
- Additional information
Additional information
| Weight | 0.64 Kg |
|---|---|
| Ambient Temperature | -5 to +40 C |
| Number of Poles | Triple Pole |
| Current Rating | 800A |
| Frequency | 50 Hz |
| Rated Operated Voltage | 230V ac. |
| Standards | BS EN 60947-2 |
| Compliance | Low Voltage Directive 2014/35/EU, Restriction of the use of certain hazardous substances directive 2011/65/EU, Waste Electrical and Electronic Equipment directive 2012/19/EU |
| Intended Purpose | Shunt trip coil. Fitted internally to MCCB – allows intentional tripping of MCCB from a control contact. |
| Response Time | 7-15ms |
| Control Signal Type | Impulse |
| Supply inrush Power | 200VA |
| Connection Type | 0.5mm2 Wire |
