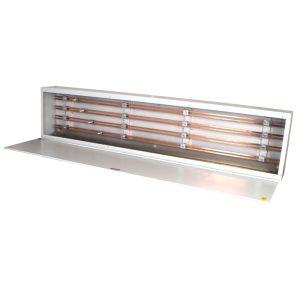

300A Busbar Chamber (1800mm Width)

  • Manufactured to BSEN 61439-1 & 2
  • Twin bar design 4 pole configuration
  • 6 ratings from 100A to 800A
  • Four nominal lengths 610, 915, 1220 and 1830mm
  • 36kA Icc
  • Fully rated neutral
  • Set of 4 clamps supplied with each chamber

Additional information

Height

400 mm

Width

1830 mm

Depth

190 mm

Weight

43 Kg

Short Circuit Rating

35kA Icc.

Ambient Temperature

-5 to +40 C

Number of Poles

Four Pole

Mounting

Wall Mounted

Guarantee

12 Months

Frequency

50 Hz

Current Rating

315A

Rated Operated Voltage

230/400V ac.

Packaging Types

Each

Protection Class IP Rating

IP3X

Enclosure

1.6mm Cold rolled steel with an epoxy paint finish to RAL7035 matt grey.

Door Covers

Screw fixed covers.

Intended Use

Busbar chambers form the distribution means between various items of switchgear selected and fitted by an electrical contractor or engineer

Product Range

Busbar Chamber
