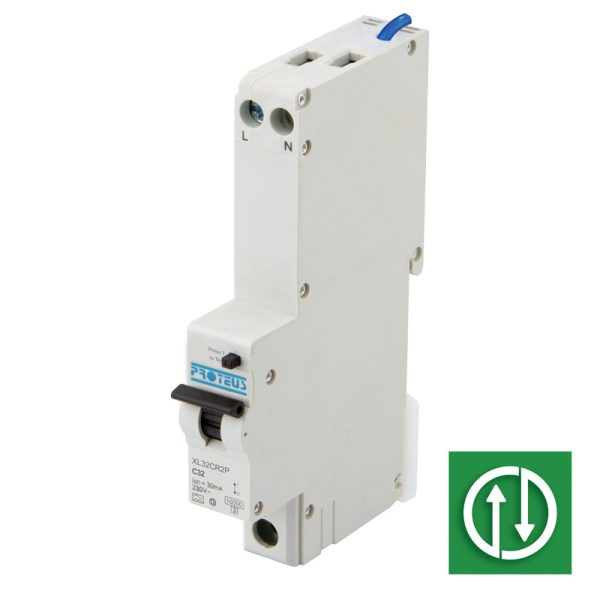

32A 1 Mod DP Bidirectional RCBO 10kA C Curve 30mA Type A
- Suitable for ABX, BX, XL, OPBX, CBX, MCX and PDU boards
- 30mA earth leakage rating, Type A earth leakage protection
- Double Pole (switch neutral)
- Thermal-Magnetic operation
- Current limiting C Curve operating characteristics
- Mechanical Flag Indicator shows ON or OFF
- Operating dolly may be locked in either the ON or OFF position
- Contacts are manufactured from carefully chosen materials
- Selected for their low electrical resistance and low propensity to weld under fault conditions
- Additional information
- Datasheet
Additional information
| Height | 116 mm |
|---|---|
| Width | 17.8 mm |
| Depth | 67 mm |
| Weight | 0.556 Kg |
| Short Circuit Rating | 10kA |
| Terminal Cable Capacity | 25 mm2 In / 16mm2 Out |
| Torque | 2 Nm In / Out. |
| Ambient Temperature | -5 to +55 C |
| Curve Code | C Curve |
| Number of Poles | Double Pole (switch neutral) |
| Guarantee | 12 Months |
| Frequency | 50 Hz |
| Current Rating | 32A |
| Rated Operated Voltage | 400V |
| Number of Modules | 1 |
| Standards | BS EN 61009, BS EN 61009 pt 1&2, BS EN 61543 |
| Protection Class IP Rating | IP2X |
| Lockable | Yes with DLPX1/P |
| Residual Current Filtering | Type A |
| Rated Magnetic Operation | 5 -9.6 x In |
| Material | Flame Retardant PBT |
| Compliance | Electromagnetic Compatibility Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Restriction of the use of certain hazardous substances directive 2011/65/EU, Waste Electrical and Electronic Equipment directive 2012/19/EU |
| Intended Purpose | short circuit and earth leakage protection., single module RCBO device is designed to switch the phase (Live) circuit feed and provide overload, This compact |
