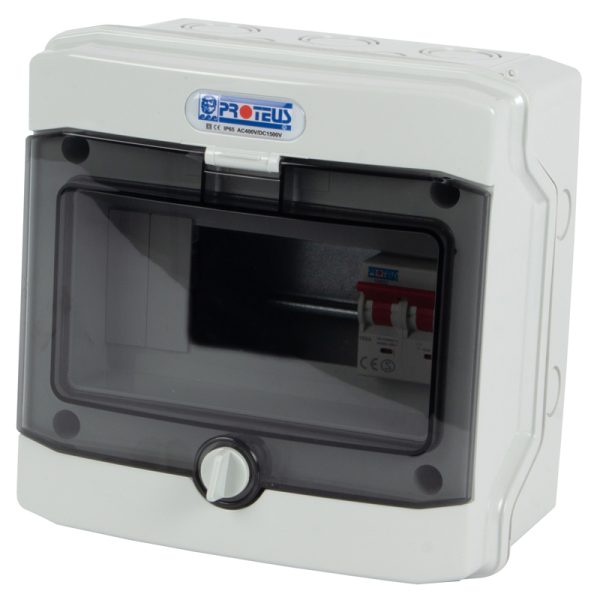

4 Way 100A Isolator Incomer IP65 Insulated Consumer Unit
- 100A Isolator Incomer

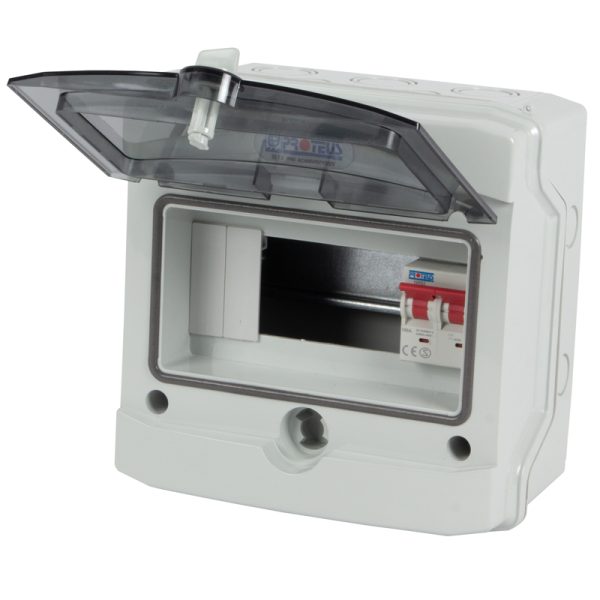

- Reversible transparent door

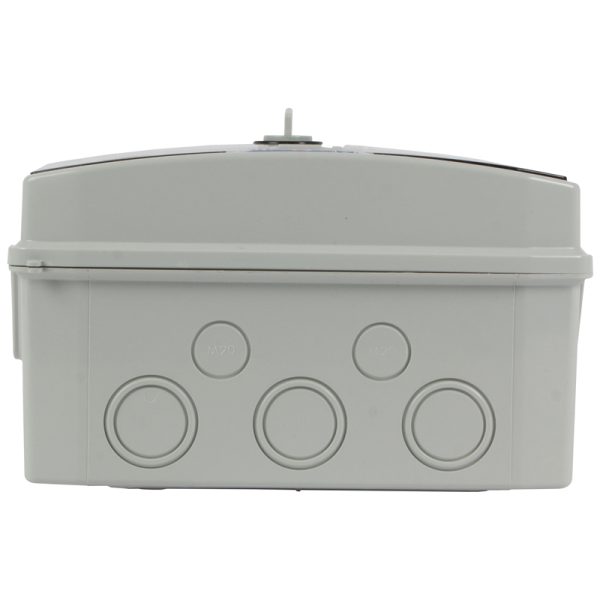

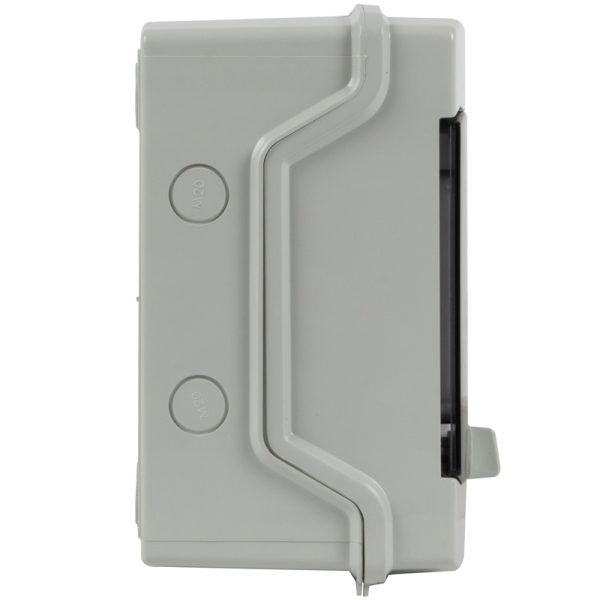

- Range of top, bottom & side entry knockouts
- Additional information
Additional information
| Height | 190mm |
|---|---|
| Width | 190mm |
| Depth | 115mm |
| Short Circuit Rating | 16kA |
| Mounting | Surface |
| Guarantee | 10 Years |
| Frequency | 50 Hz |
| Busbar Rating | 100A |
| Cable Entry | 8x 20mm & 6x 25+32mm |
| Current Rating | 100A |
| Rated Operated Voltage | 230V ac. |
| Incoming Terminal Capacity | 50mm2 |
| Terminal Type | Cage Clamp |
| Number of Modules | 6 |
| Number of Outgoing Ways | 4 |
| Packaging Types | Each |
| Product Range | IP Rated Enclosures |
| Standards | BS EN 61439 pt 3 |
| Protection Class IP Rating | IP65 |
| Lockable | Yes with D-LOCK |
| Surge Protection | Available On Request |
| Enclosure | ABS, V0 rated |
| Door Covers | Hinged Door (Reversible) |
| Switchgear Fitted | 100A Isolator |
| Material | ABS |
| Compliance | Low Voltage Directive 2014/35/EU, Restriction of the use of certain hazardous substances directive 2011/65/EU, Waste Electrical and Electronic Equipment directive 2012/19/EU |
| Intended Purpose | IP65 Distribution to final circuits through MCB's & RCBO's |
