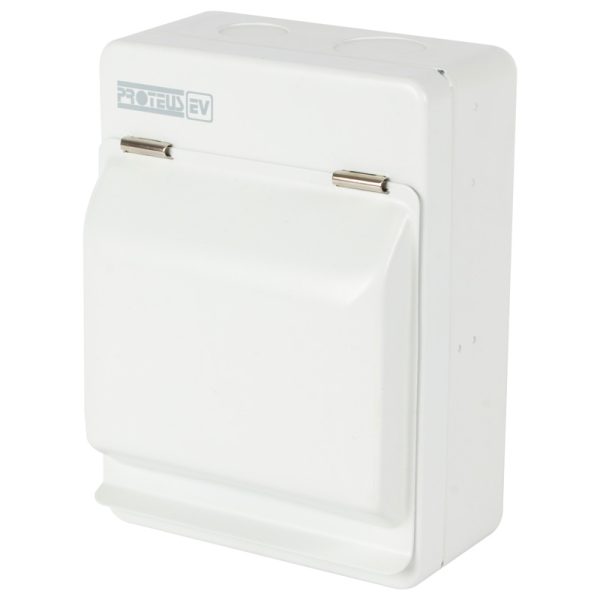

40A Compact EV Metalclad Distribution Boards with Type 2 SPD & B Curve Type A RCBO
- Compact construction
- 63A Dual screw mains isolator
- 40A DP B Curve Type A RCBO
- Bidirectional
- Busbar connection
- Internal earth and neutral included
- Type 2 surge protection
- Suitable for internal installation
- Additional information
Additional information
| Height | 176mm |
|---|---|
| Width | 130mm |
| Depth | 90mm |
| Weight | 1.468 Kg |
| Short Circuit Rating | 16kA |
| Terminal Cable Capacity | 25mm2 In / 25mm2 Out |
| Torque | 2-2.5 Nm. |
| Mounting | Wall Mounted |
| Guarantee | 1 Year |
| Frequency | 50 Hz |
| Current Rating | 63A |
| Rated Operated Voltage | 230V ac. |
| Incoming Terminal Capacity | 50mm2 |
| Terminal Type | Cage Clamp |
| Number of Modules | 5 |
| Number of Outgoing Ways | 5 |
| Product Range | Proteus EV |
| Standards | BS EN 61439 1&3 |
| Protection Class IP Rating | IP4X |
| Lockable | No |
| Operating Characteristics | Type A |
| Surge Protection | Type 2 |
| Enclosure | colour RAL7035, Steel |
| Door Covers | Hinged Door |
| Switchgear Fitted | 40A DP RCBO Type A, 63A Isolator, Type 2 SPD & blank |
| Material | Steel |
| EV Charger Circuits | 1 |
| kW Rating | 7.2 kW |
| Compliance | Electromagnetic Compatibility Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Restriction of the use of certain hazardous substances directive 2011/65/EU, Waste Electrical and Electronic Equipment directive 2012/19/EU |
| Intended Purpose | EV install protecting against overcurrent and short circuit and earth leakage. |
| Bi-directional | Yes |
