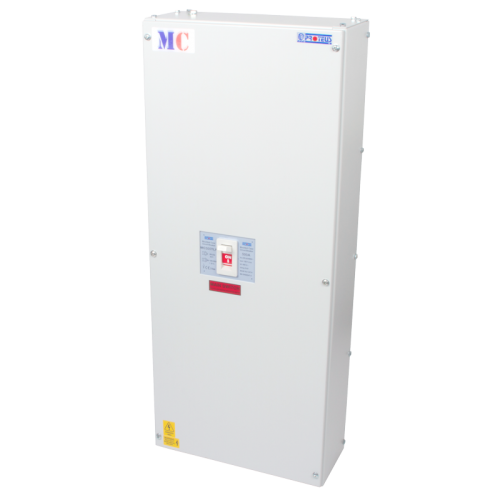

500A TP MCCB in MCENC6 Enclosure
- Range has four frames available
- Bi-directional
- Available in ratings from 63-800A
- Interrupting capacities up to 36kA at 400/415V AC
- Standard calibration is at 40 degrees
- Current limiting design
Datasheet Download
- Additional information
Additional information
| Height | 950 mm |
|---|---|
| Width | 400 mm |
| Depth | 170 mm |
| Short Circuit Rating | 36kA |
| Torque | 50 Nm (M12 bolt) |
| Ambient Temperature | -5 to +35 C |
| Guarantee | 12 Months |
| Frequency | 50 Hz |
| Current Rating | 500A |
| Rated Operated Voltage | 230/400V ac. |
| Incoming Terminal Capacity | M12 Bolts |
| Packaging Types | Each |
| Product Range | Moulded Case Circuit Breaker |
| Standards | BS EN 60947-2 |
| Protection Class IP Rating | IP3X |
| Rated Magnetic Operation | 4 – 8 x In |
| Rated Thermal Adjustment | 0.8 – 1 x In |
| Enclosure | MCENC6 |
| Compliance | Low Voltage Directive 2014/35/EU, Restriction of the use of certain hazardous substances directive 2011/65/EU, Waste Electrical and Electronic Equipment directive 2012/19/EU |
| Intended Purpose | MCCB?s are designed to automatically disconnect the supply in the event of a circuit overload. |
| Bi-directional | Yes |
