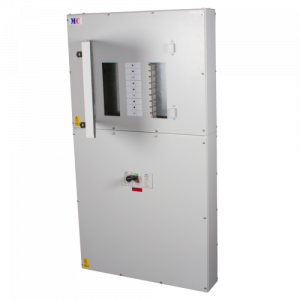

6 Way 800A Triple Pole and Neutral MCCB Panel board Complete with 630A Four Pole Switch Disconnector Incomer Fitted
- MC range of 250A, 400A and 800A busbar MCCB Panelboards
- Available from 4 to 18 triple pole outgoing ways
- Factory fitted incoming MCCB/Isolator up to 800A
- Outgoing MCCBs can be factory fitted upon request
- Maximum outgoing MCCB 250A. Higher ratings available as a custom build. Contact Proteus Industrial, Quotations.
- Full range of accessories (extension boxes, metering, earth leakage and surge protection) are available and can be factory fitted upon request
- Additional information
Additional information
| Height | 1650 mm |
|---|---|
| Width | 900 mm |
| Depth | 170 mm |
| Weight | 87 Kg |
| Short Circuit Rating | 36kA Icc. |
| Torque | M10 Bolt 40Nm max., M12 Bolt 50Nm max |
| Ambient Temperature | -5 to +40 C |
| Mounting | Wall Mounted |
| Guarantee | 12 Months |
| Frequency | 50 Hz |
| Busbar Rating | 800A |
| Cable Entry | Top And Bottom Endplates Removable For Ease Of Cutting |
| Current Rating | 800A |
| Rated Operated Voltage | 230/400V ac. |
| Incoming Terminal Capacity | M12 Bolts 240mm Square Cable and Earth M10 Bolt |
| Number of Outgoing Ways | 6 Way |
| Packaging Types | Each |
| Product Range | Moulded Case Circuit Breaker panel board |
| Standards | BS EN 61439 pt 1&2 |
| Protection Class IP Rating | IP3X |
| Enclosure | 1.6mm Cold rolled steel with an epoxy paint finish to RAL7035 matt grey. Bolted construction giving Form2B type 2 and Form3B type 2 group mounted segregation to BS EN 61439:Pt1 and 2:2011 |
| Door Covers | Screw fixed covers. Side hinged door (removable) c/w plastic turn catches. |
| Switchgear Fitted | Four Pole Isolator Incomer 630A |
| Compliance | Low Voltage Directive 2014/35/EU, Restriction of the use of certain hazardous substances directive 2011/65/EU, Waste Electrical and Electronic Equipment directive 2012/19/EU |
| Intended Purpose |
