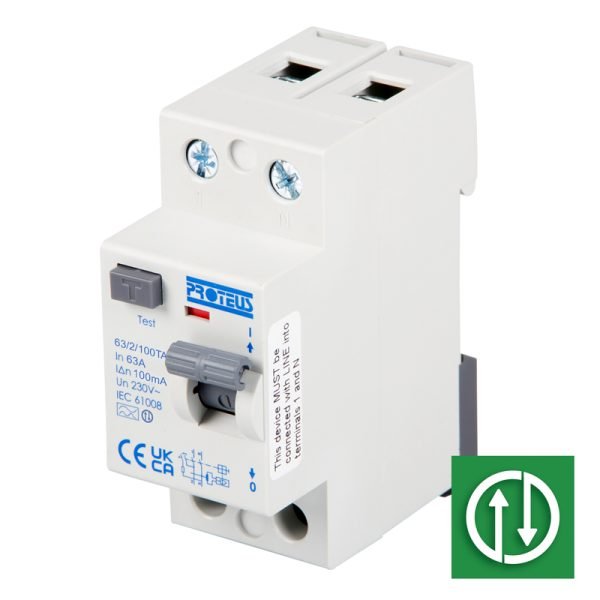

63A 2 Pole 100mA Type A Bidirectional RCD
- 1P+N Residual current device
- Bidirectional
- 16A to 100A current ratings available
- 30mA to 500mA Earth leakage ratings available
- Type A
- Additional information
- Instruction Leaflet
Additional information
| Height | 87mm |
|---|---|
| Width | 35mm |
| Depth | 65mm |
| Weight | 0.205 Kg |
| Short Circuit Rating | 6kA |
| Terminal Cable Capacity | 50mm2 |
| Torque | 2 – 2.5Nm |
| Mounting | Din Rail |
| Guarantee | 12 Months |
| Frequency | 50 Hz |
| Current Rating | 63A |
| Cable Clamp | Square Cage Clamp |
| Rated Operated Voltage | 230V ac. |
| Incoming Terminal Capacity | 50mm2 |
| Terminal Type | Cage Clamp |
| Number of Modules | 2 |
| Packaging Types | Each |
| Product Range | Residual Current Devices 1P+N Type A |
| Standards | BS EN 61008, BS EN IEC 61543 |
| Protection Class IP Rating | IP2X |
| Operating Characteristics | Type A |
| Enclosure | Polyamide (Nylon) case |
| Material | Polyamide (Nylon) case |
| Tripping Sensitivity | 100mA |
| Earth Fault Sensitivity | 100mA |
| Compliance | Electromagnetic Compatibility Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Restriction of the use of certain hazardous substances directive 2011/65/EU, Waste Electrical and Electronic Equipment directive 2012/19/EU |
| Intended Purpose | Earth leakage protection of 230V circuits |
| Bidirectional | Yes |
