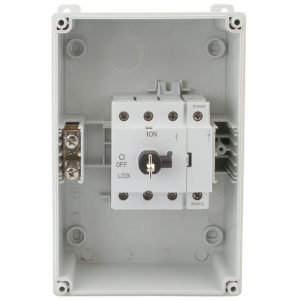

63A AC23 3P IP67 Rotary Isolator Complete with Earth Neutral Terminals
- IP67 ingress protection allows installation in the most severe conditions
- Dedicated LOCK OFF position
- High switching capability
- Strong high impact resistance enclosure IK08
- Auxiliary contact available (c/o)
Datasheet Download
- Additional information
Additional information
| Height | 210 mm |
|---|---|
| Width | 135 mm |
| Depth | 127 mm |
| Rated Insulation Voltage | 800V |
| Weight | 0.787 Kg |
| Short Circuit Rating | 15kA With 100A gG backup fuse |
| Terminal Cable Capacity | 35mm2 |
| Torque | 2 Nm |
| Mounting | Wall Mounted |
| Guarantee | 12 Months |
| Frequency | 50Hz |
| Cable Entry | 2x M20/25 knock out's – Top, Bottom and Rear. 2x M16 knock out's – Each Side. |
| Current Rating | 63A |
| Rated Operated Voltage | 690V Maximum |
| Incoming Terminal Capacity | Tunnel Terminal 1x 35 mm Square Cable |
| Standards | BS EN 60947 pt 1&3. EN60529 |
| Protection Class IP Rating | IP67 |
| Switchgear Fitted | Three Pole Isolator 63A |
| Material | Glass fibre reinforced unsaturated polyester resin. High flame resistance and anti-carbonisation |
| Compliance | Electromagnetic Compatibility Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Restriction of the use of certain hazardous substances directive 2011/65/EU, Waste Electrical and Electronic Equipment directive 2012/19/EU |
| Manufacturer | Proteus Switchgear. Stafford Park 12. Telford. Shropshire. TF3 3BJ. United Kingdom. |
| Impulse Withstand Voltage | 8kV |
| Pollution Degree | 3 |
| Utilization Category 415 VAC | 63A-AC22 A. 63A-AC23 A. 30kW-AC23 A. (kW) |
| Utilization Category 500 VAC | 63A-AC22 A. 63A-AC23 A. 30kW-AC23 A. (kW) |
| Utilization Category 690 VAC | 40A-AC22 A. 40A-AC23 A. 30kW-AC23 A. (kW) |
