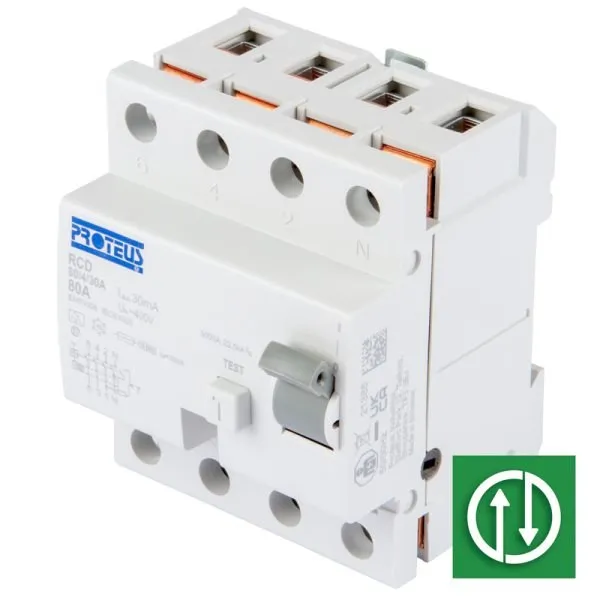

80A 4 Pole 30mA Type A Bidirectional RCD
- 4P Residual current device
- Bidirectional
- 25A to 100A current ratings available
- Type A 30mA to 300mA Earth leakage ratings available
- Type A
- Type S available 100A 100mA and 300mA
Datasheet Download
- Additional information
Additional information
| Height | 87 mm |
|---|---|
| Width | 72 mm |
| Depth | 70 mm |
| Weight | 0.38 Kg |
| Short Circuit Rating | 10kA With 80A gG backup fuse |
| Terminal Cable Capacity | 25 mm2 |
| Torque | 3Nm Max. |
| Tripping Sensitivity | 30mA |
| Ambient Temperature | -5 to +40 C |
| Mounting | Din Rail |
| Guarantee | 12 Months |
| Frequency | 50 Hz |
| Current Rating | 80A |
| Cable Clamp | Square Cage Clamp |
| Rated Operated Voltage | 230/400V ac. |
| Number of Modules | 4 |
| Packaging Types | Each |
| Product Range | Residual Current Devices 4P Type A |
| Standards | BS EN 61008 |
| Protection Class IP Rating | IP2X |
| Lockable | Yes |
| Operating Characteristics | Type A |
| Enclosure | Flame Retardent PA |
| Material | Flame Retardent PA |
| Compliance | Electromagnetic Compatibility Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Restriction of the use of certain hazardous substances directive 2011/65/EU, Waste Electrical and Electronic Equipment directive 2012/19/EU |
| Intended Use | Earth leakage protection of 230/400V circuits |
| Bi-directional | Yes |
| Impulse Withstand Voltage | 4kV |
