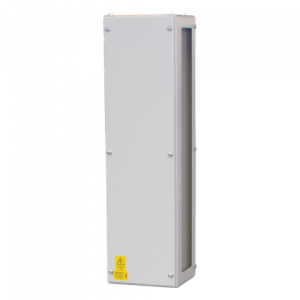

Left Hand Side Extension For MCP112/****
- These boards utilise the busbar ability to accept 250A outgoing MCCBs by using one way as the incoming position when a 3 pole incomer is acceptable
- Reduced height where space is at a premium
- Any rating of MCCB up to 250A can be used as the incomer
- The incoming device is fitted at the top right location to allow cable spreading room
- Additional information
-5 to +40 C
Top And Bottom Endplates Removable For Ease Of Cutting
MC Range MCCB Panelboards
BS EN 61439 pt 1&2
|Protection Class IP Rating|
1.6mm Cold rolled steel with an epoxy paint finish to RAL7035 matt grey. Bolted construction.
Screw fixed covers.
Low Voltage Directive 2014/35/EU, Restriction of the use of certain hazardous substances directive 2011/65/EU, Waste Electrical and Electronic Equipment directive 2012/19/EU
Cableway extension box for MCP MCCB panel board.
